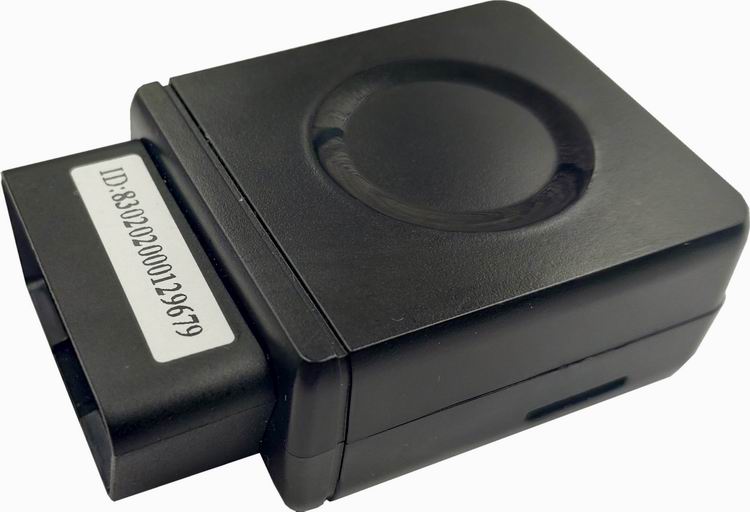

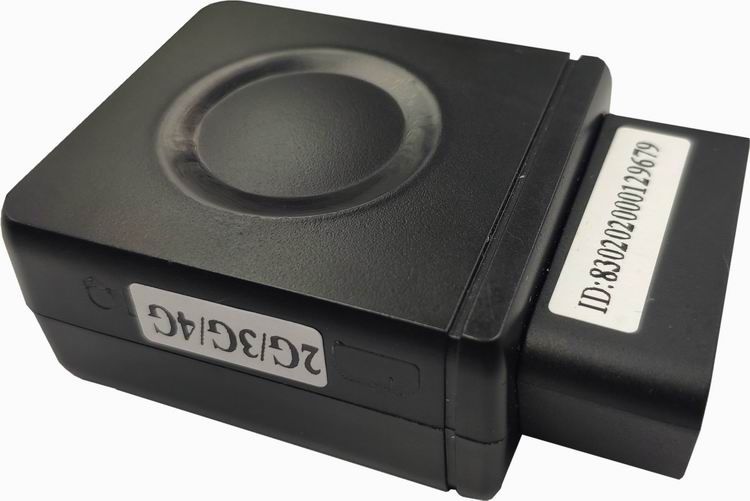

Product Introduction

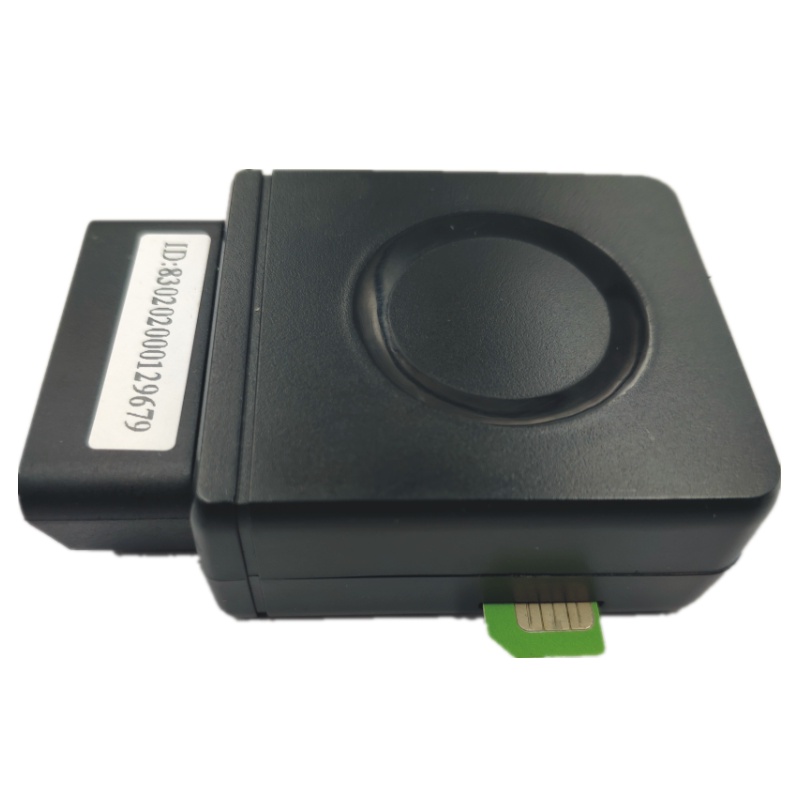

CCTR-830G-4G

2G/3G/4G OBD GPS Tracker with CAN BUS interface DTC & Car Status SMS / Web Check & CAN BUS Door Lock Control





Key Specifications/Special Features:



- 2G GSM / 3G WCDMA / 4G LTE Customized frequency band

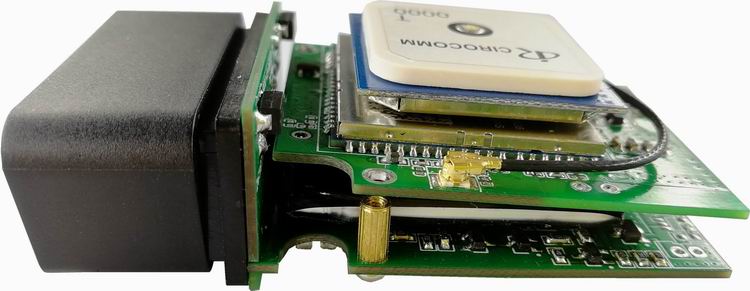

- Built in GPS + BeiDou dual mode GNSS module

- A-GPS Function for fast locating

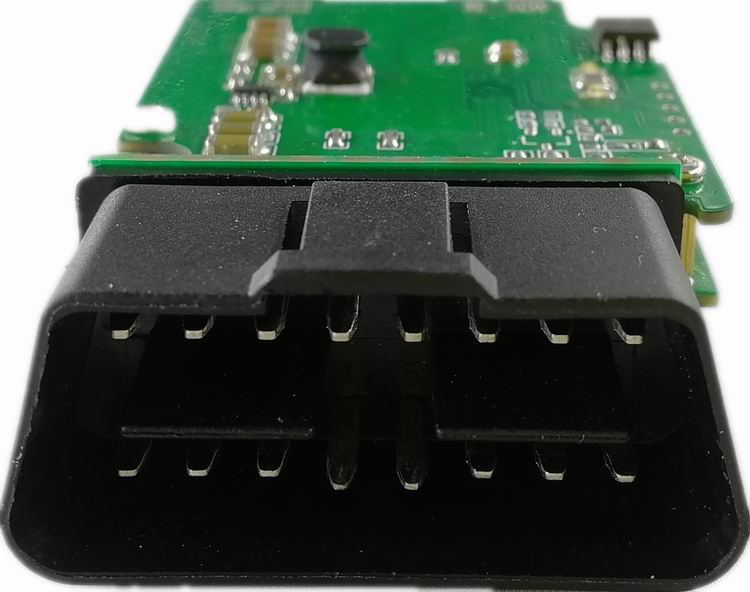

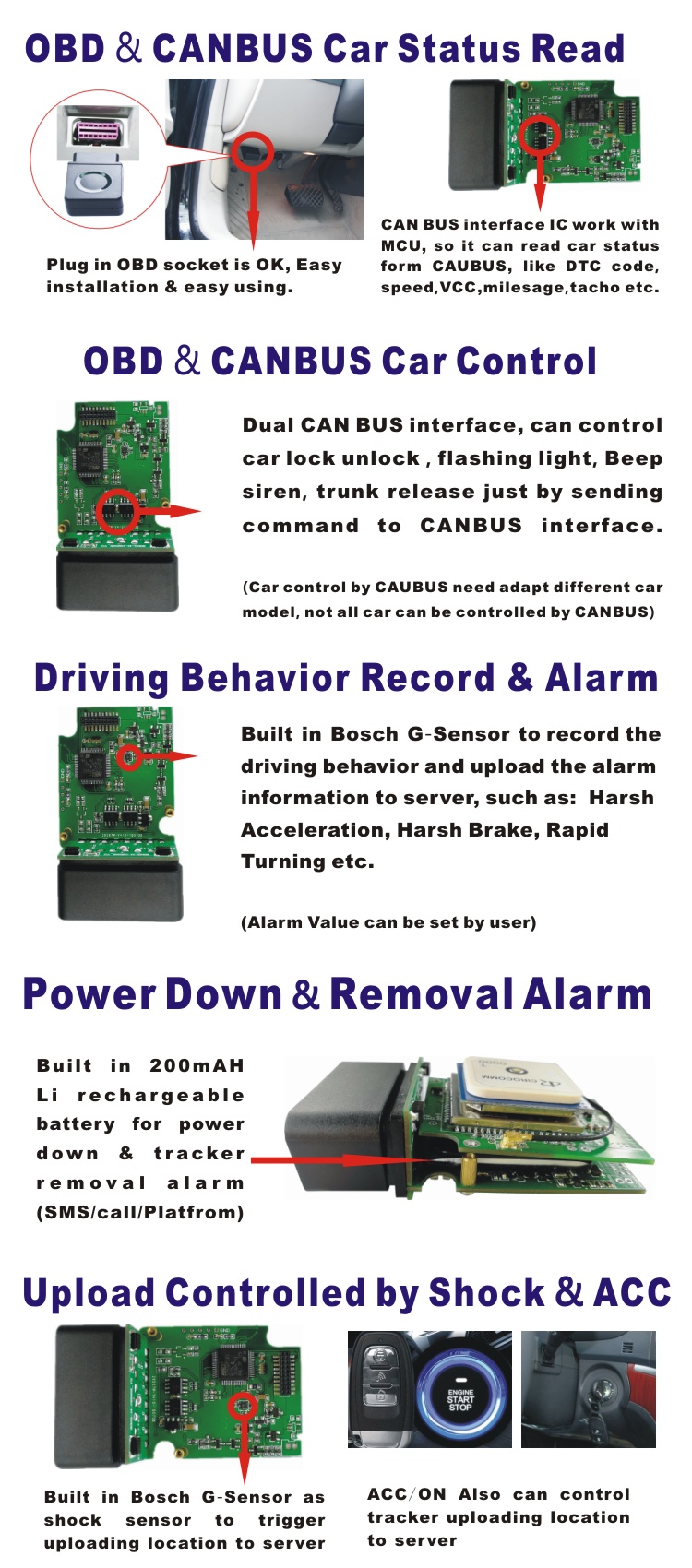

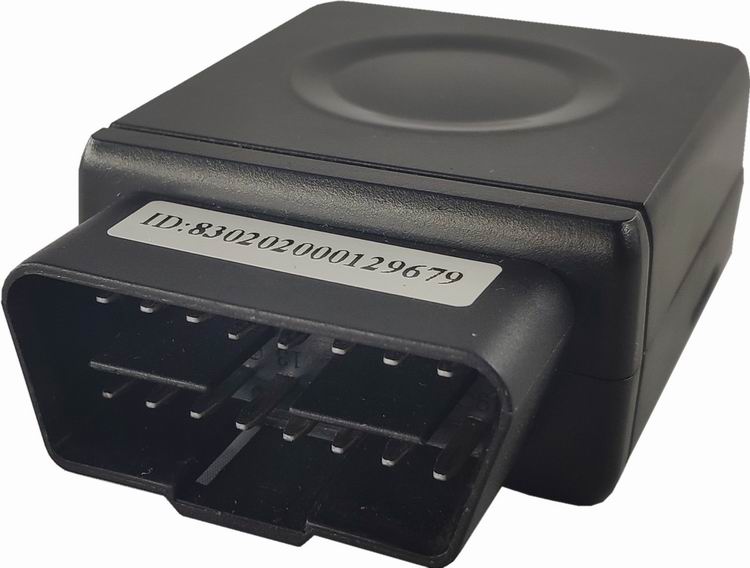

- OBD II interface, Plug & Play, DIY no installation

- DTC diagnostic code & car status SMS / Web check

- OBD CAN BUS control lock unlock door (Need adapt different car)

- Basic setting can be set by SMS

- Built in memory to record track without GSM network

- Built in GSM & GPS high sensitive antenna

- Upload real time location to server when moving

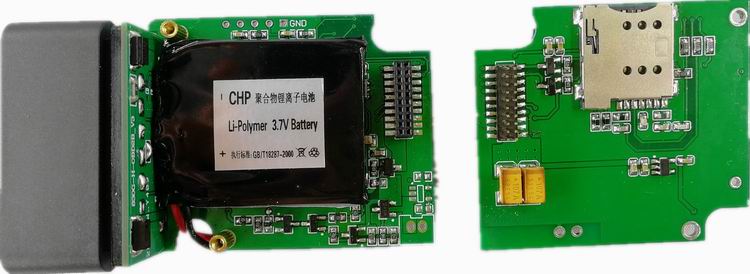

- Built in rechargeable battery (100mAH) for power down alarm & tracker removed

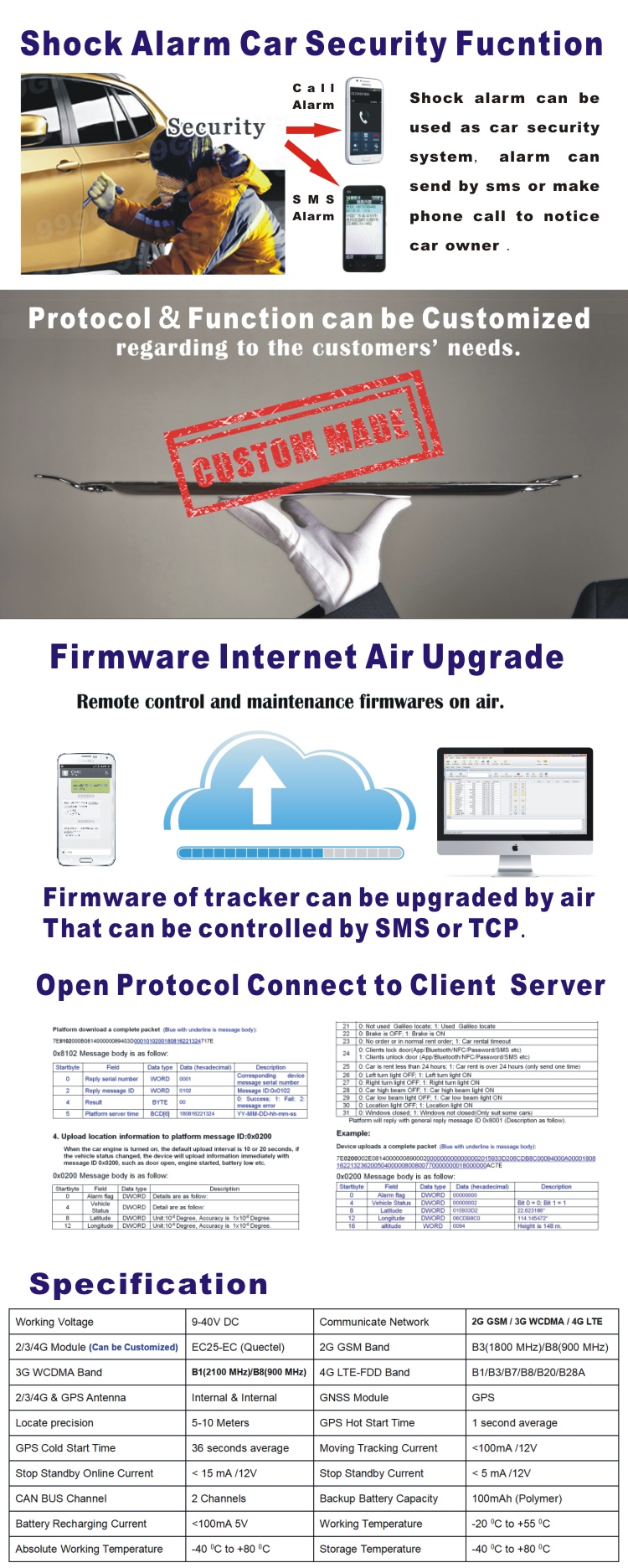

- Shock alarm (calling alarm & SMS sending) can be used as car alarm

- Power down alarm & shock alarm can be sent by SMS or calling

- Wide working voltage (7-40V), Car & truck all can be used

- Upload interval is 30 seconds & can be set by user sms

- Tracker setting need password to protect client privacy

- Auto download & configure APN & GPRS, Also can be set by SMS

- Stop uploading after stop moving 2 minutes to save car battery life

- Built in move sensor, begin uploading immediately if car begin to move

- Tracker working status & setting can be check by SMS

- Upload IP address can be set to 3rd platform by SMS

- Open GPRS protocol to client for adding protocol to platform

- Protocol & firmware can be changed to work with client platform

- Firmware of tracker internet air upgrade

- Muli-Level user for Agent / distributor / fleet / single user etc.

- Distributor can apply charging GPS tracking service with our assistance

- History tracking can be saved on server over 3-6 months

- Life time free platform Service charge (www.999gps.net )

- Support iPhone & Android App / SMS locate

- Running report can be read & export by month and day

- Personal LOGO App can be customized

- Personal domain name & login page can be customized

- GPS tracker & tracking platform total solution

- Tracking platform: www.999gps.net , demo account:123456, password:123456.

- Suit for tracking car, bus, truck, taxi, rent cars, school bus, transportation vehicle, moving equipment etc



Primary Competitive Advantages:



- 2G GSM / 3G WCDMA / 4G LTE Customized frequency band

- Built in GPS + BeiDou dual mode GNSS module

- A-GPS Function for fast locating

- OBD II interface, Plug & Play, DIY no installation

- DTC diagnostic code & car status SMS / Web check

- OBD CAN BUS control lock unlock door (Need adapt different car)

- Built in rechargeable battery (100mAH) for power down alarm & tracker removed alarm

- Firmware of tracker internet air upgrade

- Open GPRS protocol to client for adding protocol to platform

- Personal domain name & login page with customer logo can be applied

- Personal LOGO App can be customized



Package list

1 main unit, 1 tracker manual card.

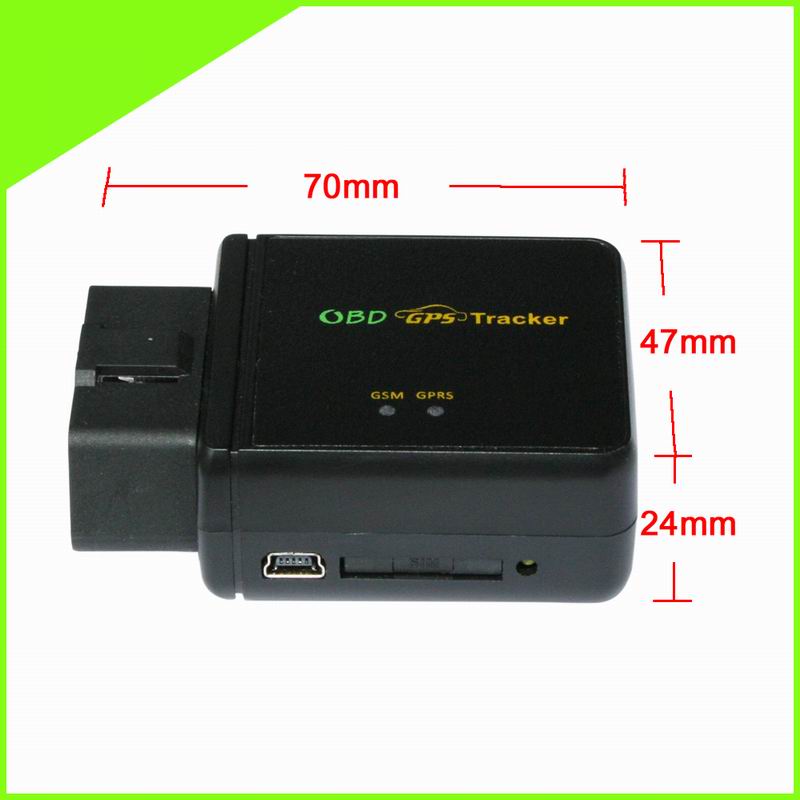

Main Dimension: 70mm*47mm*24mm

Main weight: 55g

Package: Color box

Package Dimension: 130mm*92mm*58mm   Weight: 0.30kg
